impeller type

RBW

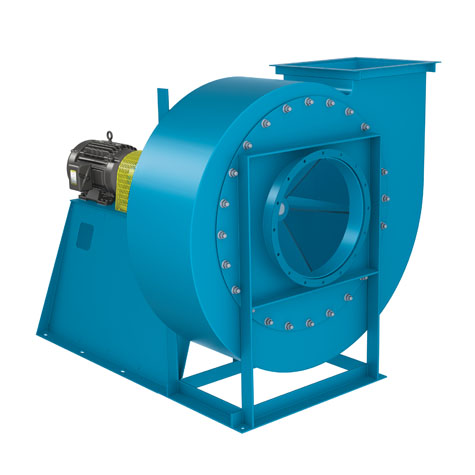

Industrial Radial Blade Fan,

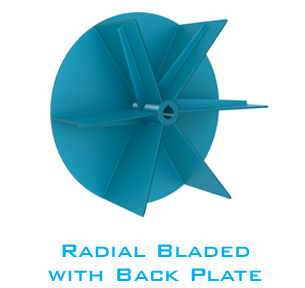

Back Plate Wool Impeller

Application

The RBW Industrial Radial Blade Fan incorporates a Back Plate Wool Impeller designed to prevent paper shreddings, threads from buffing system exhaust, and other similar matter from hanging up on and wrapping around the spiders and blades. The RBW is suitable for applications that included long, stringy or fibrous materials.

Sizes (impeller diameters)

  • 8.75 to 104.25 inches (225 mm to 2,650 mm)

Performance

  • Airflow to 141,800 CFM (240,900 m3/hour)
  • Static pressure to 46 inches w.g. (11,440 Pa)

Product Catalog

Installation manual

Link to Video Library

  • How To Videos

    Inertia Base Installation, Rotor Removal & Installation, Sheave Installation, Unitary Base Installation, Impeller Removal & Installation, Piezometer Ring Installation
