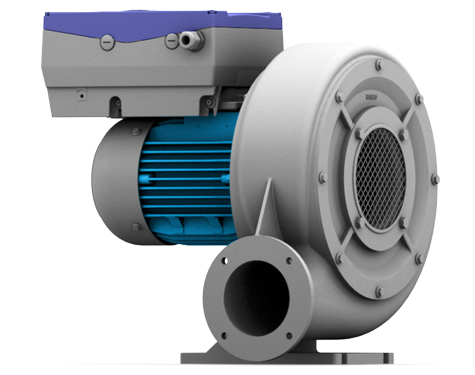

TXR

Extreme Pressure Blower,
Robust and Versatile

Application

The TXR Extreme Pressure Blower is designed to handle relative low flow and high static pressure in a wide range of operation points. The Model TXR features aluminum cast housing and an aluminum backward curved impeller directly mounted on the motor shaft, operating at a very high RPM and controlled by VFD (Variable Frequency Drive) for flexible operational conditions. The TXR offers high efficiency and reliable operation for industrial processes involving clean air (or filtered air) and medium to low operating temperature. Available up to 8,000 RPM.

Typical applications include combustion air, pressure and vacuum drying, product cooling, primary air supply to ejectors, liquid agitation, glass blowing and cooling, water blow-off, air pollution control systems, heating and ventilation, exhausting, pneumatic conveying and gas boosting.

Sizes (impeller diameters)

• 10 to 18 inches (250 mm to 450 mm)

Performance

• Airflow to 3,425 CFM (5,820 m³/hour)
• Static pressure to 64 inches w.g. (16,000 Pa)
