RBOF

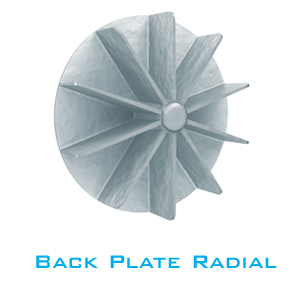

Fiberglass Radial Blade Centrifugal Fan

Application

Fiberglass fans offer superior corrosion resistance to gases, fumes, and vapors. Model RBOF fan housings are solid FRP hand lay-up construction utilizing corrosion grade flame retardant vinyl ester resin. A glass veil is standard for airstream surfaces providing a resin rich liner to maximize chemical resistance.

Sizes (wheel diameters)

  • 10.63 to 57.5 inches (270 mm to 1,465 mm)

Performance

  • Airflow to 38,300 CFM (65,100 m3/hour)
  • Static pressure to 18 inches w.g. (4,480 Pa)

Installation manual

  • Installation Manual – NA
