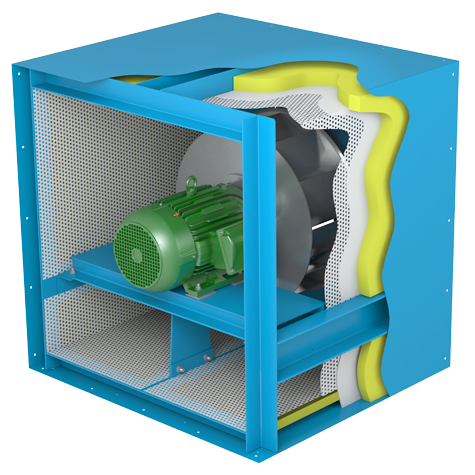

MPQN

Modular Plenum Fan, Airfoil Impeller,
12-Blades, Arrangement 4, Insulated

Application

The MPQN Plenum Fan is used in field-fabricated and factory-built air handling units to pressurize the entire surrounding air plenum. This allows discharge ductwork to be directly connected to the air handler from any direction. The plenum fan design also saves space by eliminating the fan housing, transitions and diffusers within the air handling unit.

Sizes (impeller diameters)

• 12.25 to 49 inches (315 mm to 1,245 mm)

Performance

• Airflow to 76,000 CFM (129,100 m³/hour)
• Static pressure to 12 inches w.g. (2,980 Pa)
